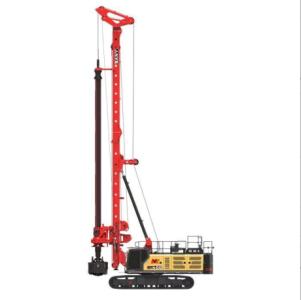

For Sale: 2025 SANY SR400M-V Rotary Drilling Rig - Dubai

Combining innovation with power, the SANY SR400M-V Rotary Drilling Rig is tailored for high-demand piling and foundation tasks. The efficient rotary drive and smart hydraulic system ensure superior drilling performance. Intelligent control guarantees precision, stability, and operator safety. Its robust frame enhances durability while keeping maintenance to a minimum. Energy-efficient and cost-effective, it delivers productivity across challenging terrains.

Features-
High Efficiency: Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.

Step Drum: Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.

Economy and Energy Saving: Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.

Convenience: The SANY SR400M-V rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.

Full Stroke Crowd: Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.

Intelligent Upgrade: HD touch screen, 3ms refresh frequency, smooth animation display.

Parameters-
Operating Weight: 137T
Base Engine: Cummins X15
Engine Power: 391/1800kW/rpm
Emission Regulation: Stage V/Tier4 final
Rated Speed: 7~26rpm
Rated Output Torque: 400kN·m
Max. Pile Diameter: 2500mm
Max. Pile Depth: 103/86m
Crowd Force: 405kN
Stroke: 9000/19000mm
Line Pull: 405kN
Overall Height: 27430mm
Transport Width: 3600mm
Transport Height: 3380mm
Lifting Capacity: 410kN
Max. Line Speed: 66m/min
Rope Diameter: 36mm

-------------------------------Price (AED): 2830000----------------------
------------------------Request For Quote: +971525384269------------
