Shop Now: SANY SR400M-V Rotary Drilling Rig 2025 Edition - Ajman

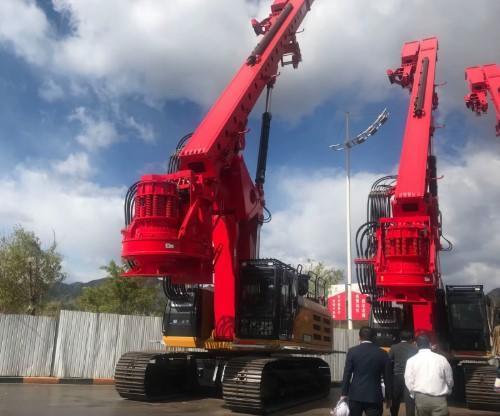

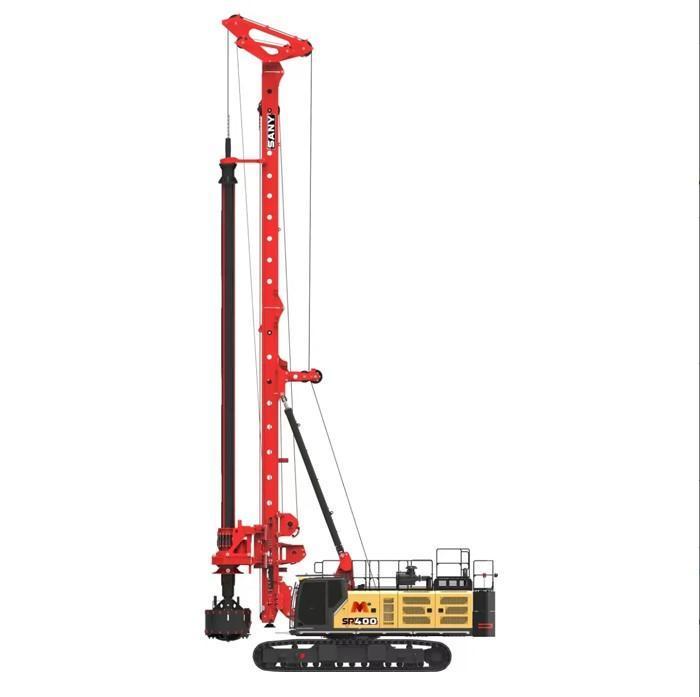

For projects that demand high precision and endurance, the SANY SR400M-V Rotary Drilling Rig delivers on every front. Its advanced hydraulic system and powerful rotary head provide outstanding drilling performance. Intelligent controls ensure accuracy, stability, and real-time adaptability. Designed for efficiency and reduced energy use, it lowers overall project costs. A dependable partner for infrastructure and piling operations.

Features-
High Efficiency: Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.

Economy and Energy Saving: Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.

Convenience: The SANY SR400M-V rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.

Step Drum: Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.

Full Stroke Crowd: Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.

Intelligent Upgrade: SANY SR400M-V has HD touch screen, 3ms refresh frequency, smooth animation display.

Parameters-
Operating Weight: 137T
Lifting Capacity: 410kN
Max. Line Speed: 66m/min
Rope Diameter: 36mm
Base Engine: Cummins X15
Engine Power: 391/1800kW/rpm
Emission Regulation: Stage V/Tier4 final
Rated Speed: 7~26rpm
Rated Output Torque: 400kN·m
Max. Pile Diameter: 2500mm
Max. Pile Depth: 103/86m
Crowd Force: 405kN
Stroke: 9000/19000mm
Line Pull: 405kN
Overall Height: 27430mm
Transport Width: 3600mm
Transport Height: 3380mm

-------------------------------Price (AED): 2830000----------------------
------------------------Request For Quote: +971525384269------------
