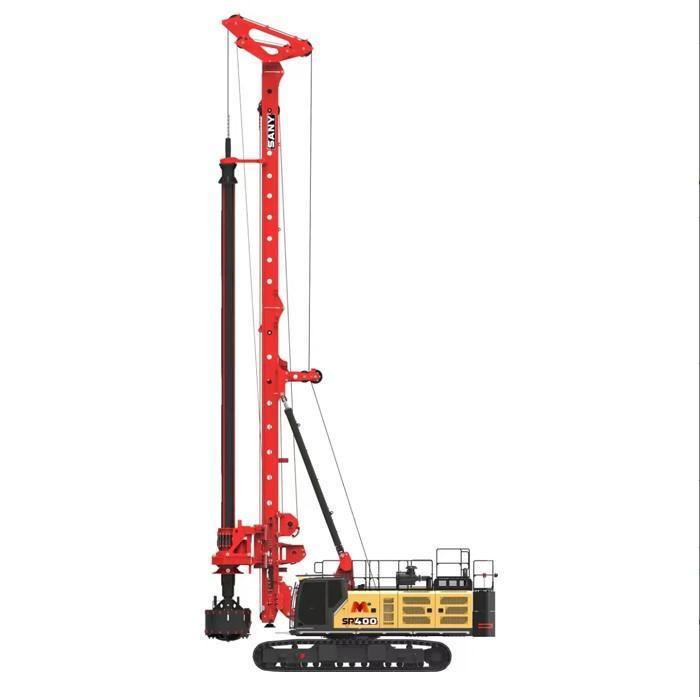

SANY SR400M-V Rotary Drilling Rig - Ras al khaima

The SR400M-V Rotary Drilling Rig combines heavy-duty power with smart efficiency. Equipped with a high-torque rotary drive and advanced hydraulic controls, it performs deep and accurate drilling operations. Its intelligent system enhances safety, precision, and stability in all conditions. With rugged construction and low upkeep requirements, it ensures lasting reliability. A perfect fit for complex foundation and piling projects.

Features-

Economy and Energy Saving: Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.

Convenience: The SANY SR400M-V rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.

High Efficiency: Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.

Step Drum: Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.

Full Stroke Crowd: Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.

Intelligent Upgrade: SANY SR400M-V has HD touch screen, 3ms refresh frequency, smooth animation display.

Parameters-
Operating Weight: 137T
Lifting Capacity: 410kN
Max. Line Speed: 66m/min
Rope Diameter: 36mm
Base Engine: Cummins X15
Engine Power: 391/1800kW/rpm
Emission Regulation: Stage V/Tier4 final
Rated Speed: 7~26rpm
Rated Output Torque: 400kN·m
Crowd Force: 405kN
Stroke: 9000/19000mm
Line Pull: 405kN
Overall Height: 27430mm
Transport Width: 3600mm
Transport Height: 3380mm
Max. Pile Diameter: 2500mm
Max. Pile Depth: 103/86m

-------------------------------Price (AED): 2830000----------------------
------------------------Request For Quote: +971525384269------------
