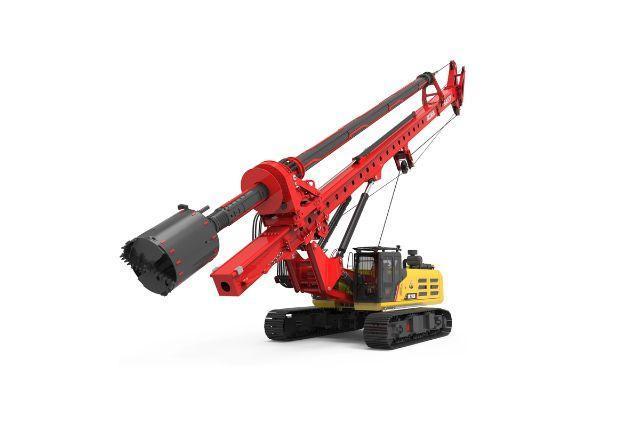

Sany SR285R-C10 Rotary Drilling Rig 2025 Model for Sale - Ras al khaima

Features
Efficient and Reliable
Widely utilized in civil construction for deep and small-diameter boreholes, with fast lifting speeds and vertical accuracy enhancing productivity.
Advanced Chassis
Telescopic wide chassis and large slewing bearing ensure excellent rig stability when drilling deep boreholes.
Eco-Friendly Power
Equipped with a large-displacement EFI engine using real-time power control to improve fuel efficiency and response speed.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~24rpm
Rated Output Torque: 285kN·m
Pile
Max. Pile Diameter: 2300mm
Max. Pile Depth: 94/61m
Crowd System
Crowd Force: 260kN
Stroke: 6000mm
Line Pull: 335kN
Overall Machine
Overall Height: 25425mm
Operating Weight: 100T
Transport Width: 3490mm
Transport Height: 3690mm
Main Winch
Lifting Capacity: 330kN
Max. Line Speed: 72m/min
Rope Diameter: 36mm

Price: AED 3328000
Request for quote: +971525384269
