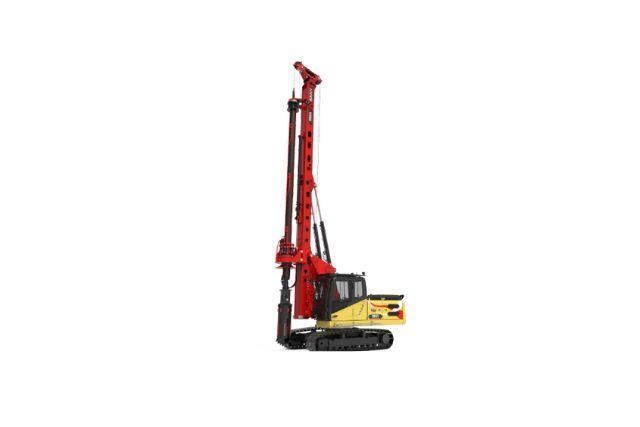

Sany 2025 SR65-C10 Rotary Drilling Rig – Designed for Deep Borehole Construction - Dubai

Features
Efficient and adaptable, these rigs are favored in civil engineering projects involving small and deep boreholes. They provide rapid hoisting and maintain high vertical accuracy of boreholes for improved productivity.
A special telescopic widening chassis combined with a roller-type slewing bearing enhances stability during deep drilling operations.
The imported EFI engine with large displacement applies real-time power distribution control for fast response and greater fuel efficiency, reducing energy consumption.

Parameters
Main Chassis
Base Engine: ISUZU 4JJ1
Engine Power: 84/2200kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~40rpm
Rated Output Torque: 70kN·m
Pile
Max. Pile Diameter: 1100mm
Max. Pile Depth: 27/20m
Crowd System
Crowd Force: 110kN
Stroke: 3000mm
Line Pull: 120kN
Overall Machine
Overall Height: 12765/8110mm
Operating Weight: 23T
Transport Width: 2700mm
Transport Height: 3410mm
Main Winch
Lifting Capacity: 90kN
Max. Line Speed: 80m/min
Rope Diameter: 20mm

Price: AED 679,000
Request for quote: +971525384269
