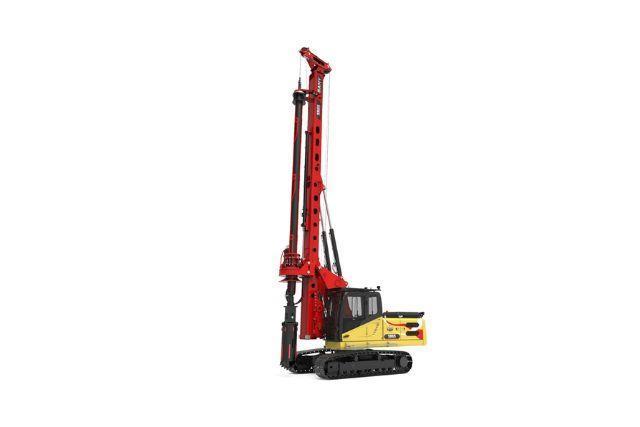

Get Your Sany 2025 SR400R-W10 Rotary Drilling Rig Today – In Stock Now - Sharjah

Features
Energy-Efficient Power Control
Uses advanced power optimization technology to balance energy output instantly, ensuring rapid and smooth composite operations with low fuel usage.
Upgraded HD Touchscreen
Equipped with a responsive touchscreen display refreshing every 3 milliseconds for seamless animations.
Simplified Service Access
Rotary drive key bar is exposed for easy maintenance; the main winch wire rope’s wedge fixation allows quick assembly and disassembly. Lubrication points are conveniently accessible.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~22rpm
Rated Output Torque: 400kN·m
Pile
Max. Pile Diameter: 2500/2200mm
Max. Pile Depth: 105/86m
Crowd System
Crowd Force: 350kN
Stroke: 9000/18000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27105mm
Operating Weight: 137T
Transport Width: 3530mm
Transport Height: 3575mm
Main Winch
Lifting Capacity: 410kN
Max. Line Speed: 70m/min
Rope Diameter: 36mm

Price: AED 3300000
Request for quote: +971525384269
