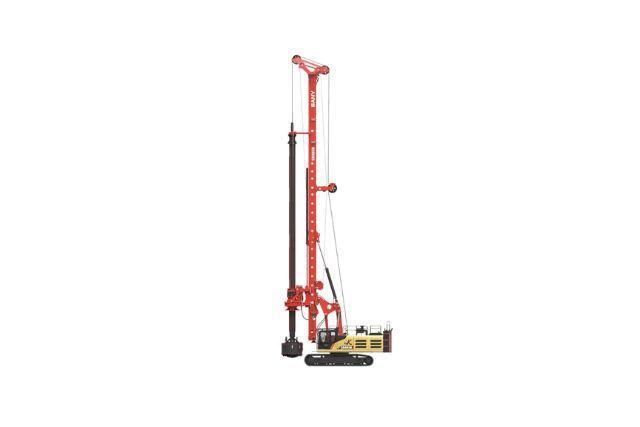

Affordable Sany 2025 SR405R-HK Rotary Drilling Rig For Sale – Don’t Miss Out! - Sharjah

Features
Powerful Drilling in Hard Rock Layers
The heaviest model within this level guarantees strong crowding force and stable torque output through a heavy-duty, impact-resistant reducer, suitable for rock hardness beyond 60MPa.
Enhanced Reliability and Durability
Built with impact and fatigue-resistant components, and a single-layer wire rope winding on the Kelly bar that reduces wear, the wire rope life is extended by 35%.
Economical and Environmentally Friendly
Thanks to real-time power distribution and fast compound response enabled by power optimization control technology, fuel consumption drops by 10-15%.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 377/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~25rpm
Rated Output Torque: 405kN·m
Pile
Max. Pile Diameter: 2800mm
Max. Pile Depth: 103/84m
Crowd System
Crowd Force: 340kN
Stroke: 6000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27700mm
Operating Weight: 131T
Transport Width: 3550mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 400kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm

Price: AED 3342000
Request for quote: +971525384269
