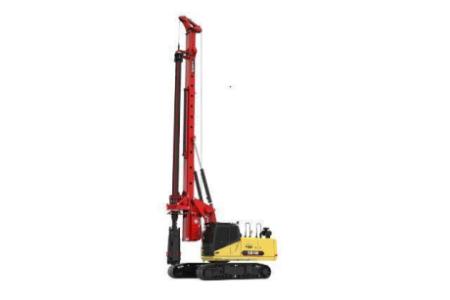

Get Your Sany 2025 SR140-C10 Rotary Drilling Rig - Ajman

Features
Reliable and Productive
Excellent for civil works involving deep drilling, offering fast hoist cycles, accurate alignment, and consistent performance.
Built for Stability
The chassis features a telescoping, large-width frame and oversized slewing bearing to ensure drilling precision in tough conditions.
Power-Efficient System
A large EFI engine fine-tunes power usage in real time, enabling faster reaction and greater fuel savings on the job.

Parameters
Main Chassis
Base Engine: ISUZU 4HK1
Engine Power: 133/2000kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 6～45rpm
Rated Output Torque: 140kN·m
Pile
Max. Pile Diameter: 1300/1500mm
Max. Pile Depth: 45/36m
Crowd System
Crowd Force: 120kN
Stroke: 3700mm
Line Pull: 160kN
Overall Machine
Overall Height: 16490mm
Operating Weight: 37T
Transport Width: 2660/2550mm
Transport Height: 33435mm
Main Winch
Lifting Capacity: 160kN
Max. Line Speed: 80m/min
Rope Diameter: 24mm

Price: AED 1,200,000
Request for quote: +971525384269
