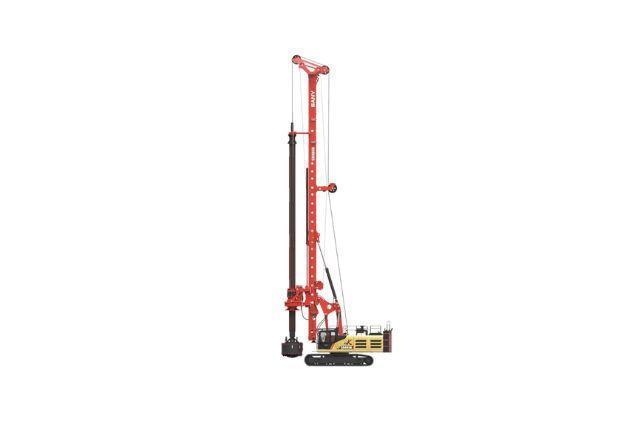

For Sale: Sany 2025 SR405R-HK Rotary Drilling Rig – Powerful & Efficient - Umm al Quwain
Features
Exceptional Drilling Power for Hard Rock
The heaviest model at this level delivers strong crowding force with a heavy-duty, impact-resistant reducer that guarantees stable torque, perfect for drilling rock harder than 60MPa.
Durability Through Design
Key components utilize impact and fatigue-resistant technology, and the Kelly bar’s single-layer wire rope winding prevents wear, extending wire rope life by 35%.
Economical Fuel Use
Power optimization control enables real-time power allocation with rapid compound action, reducing overall fuel consumption by 10 to 15%.
Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 377/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~25rpm
Rated Output Torque: 405kN·m
Pile
Max. Pile Diameter: 2800mm
Max. Pile Depth: 103/84m
Crowd System
Crowd Force: 340kN
Stroke: 6000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27700mm
Operating Weight: 131T
Transport Width: 3550mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 400kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm
Price: AED 3342000
Request for quote: +971525384269
