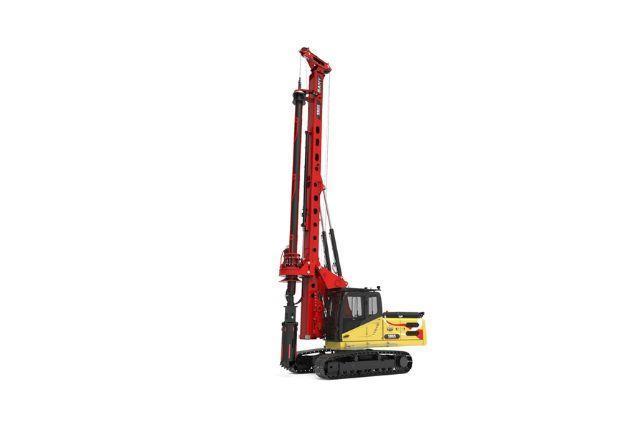

Exclusive Discounts on Sany 2025 SR400R-W10 Rotary Drilling Rig – Buy Now - Umm al Quwain

Features
Fuel-Saving Power Distribution
Adopts dynamic power optimization to provide efficient energy use, ensuring smooth and responsive composite operation with low fuel consumption.
HD Touchscreen Upgrade
Equipped with a touchscreen featuring a 3ms refresh rate for smooth, clear display and animation.
Convenient Maintenance Design
Rotary drive key bar is exposed for easy access during servicing; the main winch wire rope uses a wedge for quick disassembly and assembly. Lubrication points are readily accessible.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~22rpm
Rated Output Torque: 400kN·m
Pile
Max. Pile Diameter: 2500/2200mm
Max. Pile Depth: 105/86m
Crowd System
Crowd Force: 350kN
Stroke: 9000/18000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27105mm
Operating Weight: 137T
Transport Width: 3530mm
Transport Height: 3575mm
Main Winch
Lifting Capacity: 410kN
Max. Line Speed: 70m/min
Rope Diameter: 36mm

Price: AED 3300000
Request for quote: +971525384269
