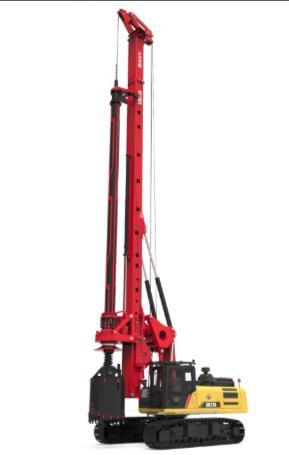

SANY SR215-C10 Rotary Drilling Rig Available – Strong Civil Performer - Sharjah

Widely used in deep civil construction, this rig features fast lifting, accurate drilling, and reliable borehole verticality. Its wide telescopic base and roller slewing bearing provide steady operation. With an imported EFI engine, it balances strong performance with fuel efficiency. The mast and upgraded Kelly bar boost drilling force for tough layers. Operators can easily manage operations via the 10-inch HD touch screen.

Parameters

Main Chassis

Base Engine- Isuzu 6HK1
Engine Power- 212/2000kW/rpm
Emission Regulation- China Stage Ⅲ

Rotary Drive

Rated Speed- 5~30rpm
Rated Output Torque- 220kN·m

Pile

Max. Pile Diameter- 1800mm
Max. Pile Depth- 64/51m

Crowd System

Crowd Force- 180kN
Stroke- 4200mm
Line Pull- 190kN

Overall Machine

Overall Height- 21040mm
Operating Weight- 65T
Transport Width- 3210mm
Transport Height- 3560mm

Main Winch

Lifting Capacity- 220kN
Max. Line Speed- 75m/min
Rope Diameter- 28mm

Price: 2500000 AED
For More Information
Call us Now: +971 525384269
