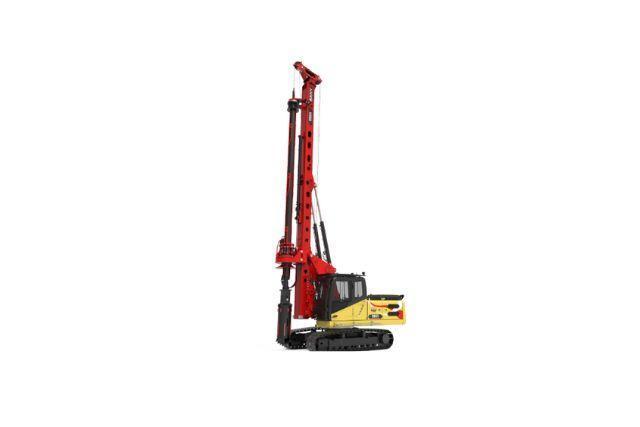

Sany 2025 SR65-C10 Rotary Drilling Rig – Trusted Choice for Professional Drillers - Fujairah

Features
These rigs provide efficient and flexible solutions for small-diameter deep borehole projects in civil engineering, offering fast hoist speeds and maintaining precise verticality for boreholes.
Their telescopic large widening chassis paired with a roller-type large diameter slewing bearing guarantees high stability during drilling.
Equipped with a powerful imported EFI engine, the system features real-time power optimization control for quick power adjustments, superior fuel efficiency, and energy conservation.

Parameters
Main Chassis
Base Engine: ISUZU 4JJ1
Engine Power: 84/2200kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~40rpm
Rated Output Torque: 70kN·m
Pile
Max. Pile Diameter: 1100mm
Max. Pile Depth: 27/20m
Crowd System
Crowd Force: 110kN
Stroke: 3000mm
Line Pull: 120kN
Overall Machine
Overall Height: 12765/8110mm
Operating Weight: 23T
Transport Width: 2700mm
Transport Height: 3410mm
Main Winch
Lifting Capacity: 90kN
Max. Line Speed: 80m/min
Rope Diameter: 20mm

Price: AED 679,000
Request for quote: +971525384269
