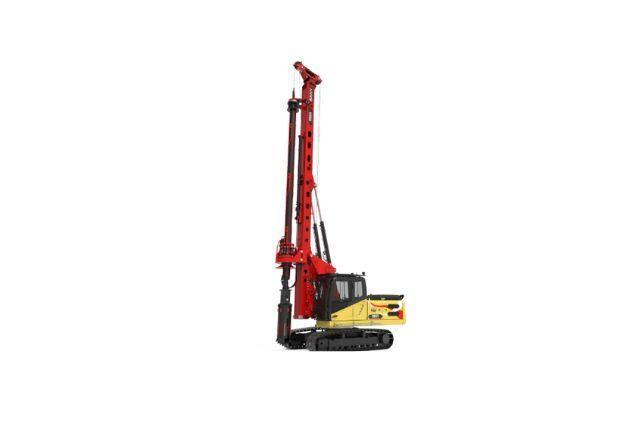

Sany 2025 SR65-C10 Rotary Drilling Rig – Robust Performance for Heavy Duty Work - Ras al khaima

Features
Renowned for their efficiency and versatility, these rigs are widely used in deep borehole construction with small diameters. They ensure fast lifting speeds and accurate verticality of boreholes, optimizing operational efficiency.
The telescopic large widening chassis and roller-type large slewing bearing provide excellent stability in demanding drilling tasks.
Powered by a high-capacity imported EFI engine, the rig leverages power optimization control for real-time power management, quick responsiveness, and enhanced fuel efficiency.
Parameters
Main Chassis
Base Engine: ISUZU 4JJ1
Engine Power: 84/2200kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~40rpm
Rated Output Torque: 70kN·m
Pile
Max. Pile Diameter: 1100mm
Max. Pile Depth: 27/20m
Crowd System
Crowd Force: 110kN
Stroke: 3000mm
Line Pull: 120kN
Overall Machine
Overall Height: 12765/8110mm
Operating Weight: 23T
Transport Width: 2700mm
Transport Height: 3410mm
Main Winch
Lifting Capacity: 90kN
Max. Line Speed: 80m/min
Rope Diameter: 20mm

Price: AED 679,000
Request for quote: +971525384269
