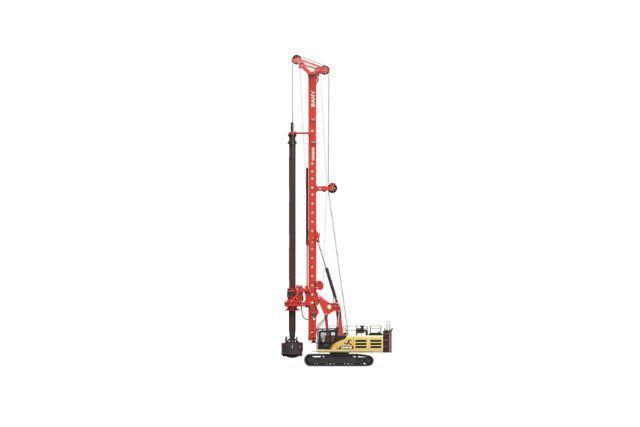

Sany 2025 SR405R-HK Rotary Drilling Rig – High Performance, Ready to Work - Dubai

Features
High-Strength Rock Drilling Capability
This model, the largest in its category, offers superior crowding force and an impact-resistant reducer for steady torque output, ideal for drilling hard rock exceeding 60MPa.
Durable and Reliable Structure
Using impact and fatigue resistance technologies, the Kelly bar’s single-layer wire rope winding avoids mutual abrasion, increasing wire rope service life by 35%.
Fuel Efficiency Focused
Advanced power optimization control manages power dynamically, providing quick compound action response and cutting fuel consumption by up to 15%.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 377/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5～25rpm
Rated Output Torque: 405kN·m
Pile
Max. Pile Diameter: 2800mm
Max. Pile Depth: 103/84m
Crowd System
Crowd Force: 340kN
Stroke: 6000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27700mm
Operating Weight: 131T
Transport Width: 3550mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 400kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm

Price: AED 3342000
