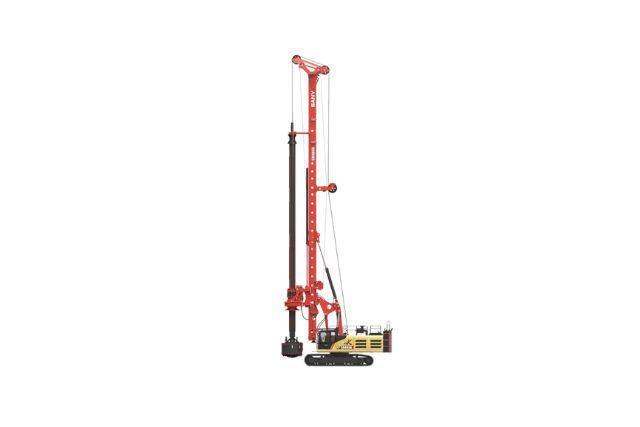

Sany 2025 SR405R-HK Rotary Drilling Rig – Heavy-Duty Rock Drilling Solution - Ajman

Features
Robust Rock Drilling Performance
The largest model in its class delivers significant crowding force and incorporates a heavy-duty reducer resistant to impacts, providing steady torque for drilling rock harder than 60MPa.
Reliable Structural Design
The impact and fatigue-resistant technology in key parts and the Kelly bar’s single-layer wire rope winding reduce mutual wear, extending the wire rope’s life by 35%.
Energy-Saving Operation
Power optimization control technology allows real-time power management with rapid compound response, cutting fuel consumption by up to 15%.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 377/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5～25rpm
Rated Output Torque: 405kN·m
Pile
Max. Pile Diameter: 2800mm
Max. Pile Depth: 103/84m
Crowd System
Crowd Force: 340kN
Stroke: 6000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27700mm
Operating Weight: 131T
Transport Width: 3550mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 400kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm

Price: AED 3342000
Request for quote: +971525384269
