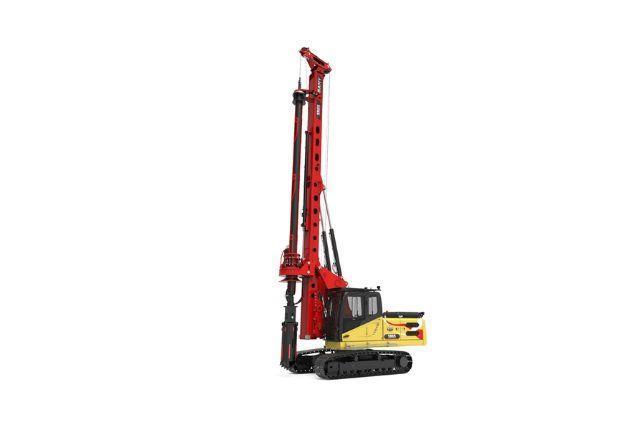

Sany 2025 SR400R-W10 Rotary Drilling Rig Available for Sale – Contact Us Today - Fujairah

Features
Efficient Energy Allocation
Real-time power optimization controls energy distribution, supporting smooth composite movements and conserving fuel.
Interactive HD Display
An HD touchscreen with a rapid 3ms refresh rate provides smooth animations and enhanced clarity.
Easy Service Access
Rotary drive key bar is accessible for quick maintenance; the main winch wire rope’s wedge fixation allows for straightforward assembly and removal. Lubrication points are exposed for easy servicing.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~22rpm
Rated Output Torque: 400kN·m
Pile
Max. Pile Diameter: 2500/2200mm
Max. Pile Depth: 105/86m
Crowd System
Crowd Force: 350kN
Stroke: 9000/18000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27105mm
Operating Weight: 137T
Transport Width: 3530mm
Transport Height: 3575mm
Main Winch
Lifting Capacity: 410kN
Max. Line Speed: 70m/min
Rope Diameter: 36mm

Price: AED 3300000
Request for quote: +971525384269
