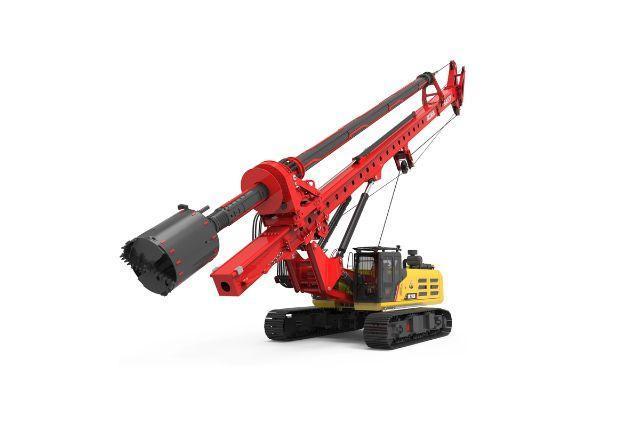

Sany 2025 SR285R-C10 Rotary Drilling Rig – Powerful and Reliable - Sharjah
Features
Efficient and Flexible
Widely used in civil engineering for small-diameter and deep borehole drilling, offering fast hoisting speeds, precise vertical boreholes, and high construction efficiency.
Special Chassis
Features a telescopic, wide-extension chassis with a large-diameter roller slewing bearing, ensuring excellent stability during deep borehole work.
Economical and Energy-Saving
Equipped with a powerful imported EFI engine that uses real-time power optimization for quick response, better fuel efficiency, and reduced energy consumption.
Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~24rpm
Rated Output Torque: 285kN·m
Pile
Max. Pile Diameter: 2300mm
Max. Pile Depth: 94/61m
Crowd System
Crowd Force: 260kN
Stroke: 6000mm
Line Pull: 335kN
Overall Machine
Overall Height: 25425mm
Operating Weight: 100T
Transport Width: 3490mm
Transport Height: 3690mm
Main Winch
Lifting Capacity: 330kN
Max. Line Speed: 72m/min
Rope Diameter: 36mm
Price: AED 3328000
Request for quote: +971525384269
