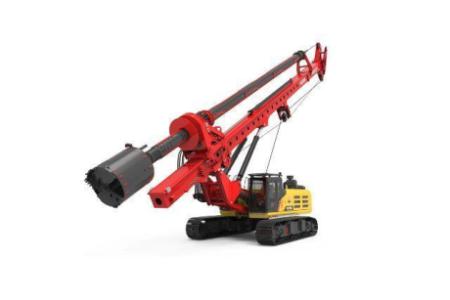

Sany 2025 SR285R-C10 Rotary Drilling Rig – Ideal for Deep Borehole Drilling - Fujairah

Features
Efficient and Precise
Extensively used in civil engineering for small diameter and deep boreholes, combining fast lifting and vertical accuracy for enhanced work efficiency.
Chassis Designed for Stability
A telescopic wide chassis equipped with a large roller slewing bearing ensures strong stability in deep borehole operations.
Energy-Efficient Engine
The imported EFI engine adopts power optimization control, providing quick response and better fuel economy.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~24rpm
Rated Output Torque: 285kN·m
Pile
Max. Pile Diameter: 2300mm
Max. Pile Depth: 94/61m
Crowd System
Crowd Force: 260kN
Stroke: 6000mm
Line Pull: 335kN
Overall Machine
Overall Height: 25425mm
Operating Weight: 100T
Transport Width: 3490mm
Transport Height: 3690mm
Main Winch
Lifting Capacity: 330kN
Max. Line Speed: 72m/min
Rope Diameter: 36mm

Price: AED 3328000
Request for quote: +971525384269
