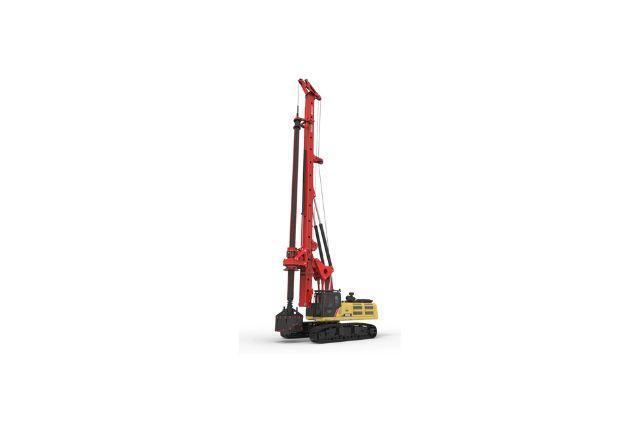

Purchase Now: SANY 2025 SR235-S Rotary Drilling Rig for Sale - Abu Dhabi

Features
Precision Drilling with Maximum Efficiency
Delivers accurate vertical drilling, quick hoist operation, and reliable output, ideal for civil foundation projects.
Chassis Tailored for Depth
Wide, telescopic frame and large roller slewing bearing give the rig the stability needed for deep drilling jobs.
Advanced Power Optimization
EFI engine with smart control technology ensures minimal energy waste and faster response under load.

Parameters
Main Chassis
Base Engine: ISUZU 6UZ1
Engine Power: 257/2000kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~32rpm
Rated Output Torque: 235kN·m
Pile
Max. Pile Diameter: 2000mm
Max. Pile Depth: 68/52m
Crowd System
Crowd Force: 210kN
Stroke: 5000mm
Line Pull: 270kN
Overall Machine
Overall Height: 22870mm
Operating Weight: 81T
Transport Width: 3540mm
Transport Height: 3660mm
Main Winch

Price: AED 1,900,000
Request for quote: +971525384269
