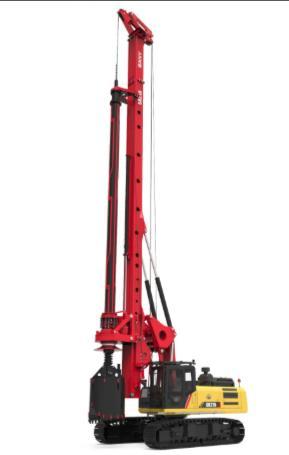

Own SANY SR215-C10 Rotary Drilling Rig – Advanced Borehole Specialist - Umm al Quwain

This rotary drilling rig is perfect for deep civil construction with quick hoist speed and efficient drilling. Its telescopic chassis and roller slewing bearing ensure strong stability for deep borehole work. Powered by a high-displacement EFI engine, it optimizes fuel use for energy savings. A durable box mast and sixth-generation Kelly bar provide greater resistance and drilling power. User convenience is enhanced with a responsive 10-inch HD touch display.

Parameters

Main Chassis

Base Engine- Isuzu 6HK1
Engine Power- 212/2000kW/rpm
Emission Regulation- China Stage Ⅲ

Rotary Drive

Rated Speed- 5~30rpm
Rated Output Torque- 220kN·m

Pile

Max. Pile Diameter- 1800mm
Max. Pile Depth- 64/51m

Crowd System

Crowd Force- 180kN
Stroke- 4200mm
Line Pull- 190kN

Overall Machine

Overall Height- 21040mm
Operating Weight- 65T
Transport Width- 3210mm
Transport Height- 3560mm

Main Winch

Lifting Capacity- 220kN
Max. Line Speed- 75m/min
Rope Diameter- 28mm

Price: 2500000 AED
