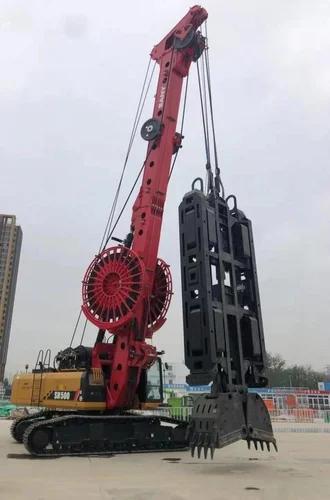

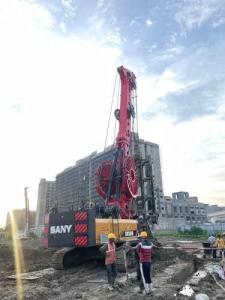

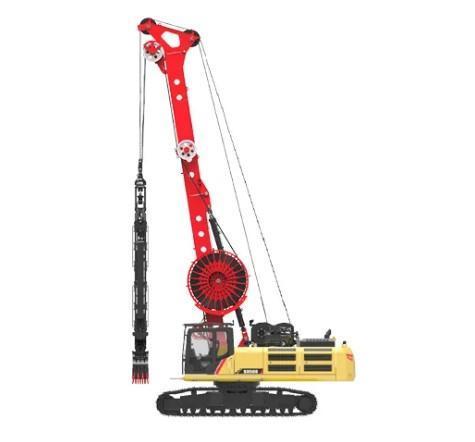

Order SANY SH500 Hydraulic Grab 2025 - Fujairah

Engineered with advanced technology, the SANY SH500 Hydraulic Grab ensures powerful, precise, and efficient handling performance. Its strong hydraulic system offers optimal force for heavy lifting and excavation tasks. The durable design guarantees stability and extended operational life. Ideal for use in large-scale projects, it delivers smooth and reliable performance. Built to perform under pressure, it maximizes efficiency and operator confidence.

Features-
Powerful: The working device has large weight and maximum impact power, and can be deployed in strongly weathered rock strata within 10MPa.
Fast: The opening and closing time of the bucket is only 9 seconds, and the efficiency of soil catching, slag collecting and unloading is higher. The winch adopts synchronous confluence technology with the fastest speed.
Straight: The dynamic real-time detection technology of gyroscope is adopted to adjust the deviation of the gantry push plate in real time, and the perpendicularity of the groove can reach 1‰.
Stable: Professional large gauge chassis reduces rapid impact and shake and improves construction safety.
Deep: The construction depth is 80 meters, covering more than 90% of underground support projects, and the quality of grooves deeper than 60 meters is higher.
Economical: The main winch adopts single-layer large drum, and the wire rope has longer service life.
Convenient: It is equipped with electric centralized lubrication system and hydraulic quick-change joint to improve the convenience of disassembly, installation and maintenance.
Intelligent: Professional operating system with real-time display of drilling situation.

Parameters-
Base Engine: ISUZU 6UZ1
Engine Power: 257/2000kW/rpm
Emission Regulation: China Stage III
Groove Width: 600-1200mm
Groove Depth: 80m
Overall Height: 17435mm
Operating Weight: 100T
Transport Width: 3500mm
Transport Height: 3720mm
Max. Closing Force: 165T
Weight: 15-25T
Open & Close Bucket Time: 10/10S
Lifting Capacity: 2*270kN
Max. Line Speed: 80m/min
Wire Rope Diameter: 32mm
