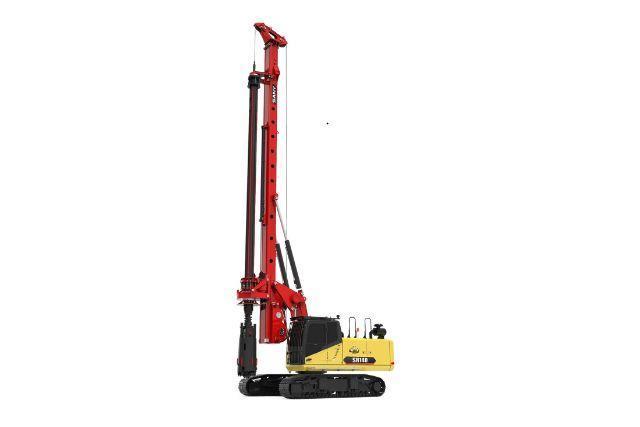

Now For Sale Sany 2025 SR140-C10 Rotary Drilling Rig - Ras al khaima

Features
Precision Drilling Performance
Ideal for civil engineering boreholes, this rig delivers fast lifting speeds and exceptional straightness in drilled holes.
Engineered for Deep Work
The rotary rig chassis expands telescopically, with a large slewing bearing to support deep foundation construction.
Eco-Efficient Powertrain
A robust EFI engine adjusts power delivery intelligently, improving energy efficiency while ensuring high torque output.

Parameters
Main Chassis
Base Engine: ISUZU 4HK1
Engine Power: 133/2000kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 6～45rpm
Rated Output Torque: 140kN·m
Pile
Max. Pile Diameter: 1300/1500mm
Max. Pile Depth: 45/36m
Crowd System
Crowd Force: 120kN
Stroke: 3700mm
Line Pull: 160kN
Overall Machine
Overall Height: 16490mm
Operating Weight: 37T
Transport Width: 2660/2550mm
Transport Height: 33435mm
Main Winch
Lifting Capacity: 160kN
Max. Line Speed: 80m/min
Rope Diameter: 24mm

Price: AED 1,200,000
Request for quote: +971525384269
