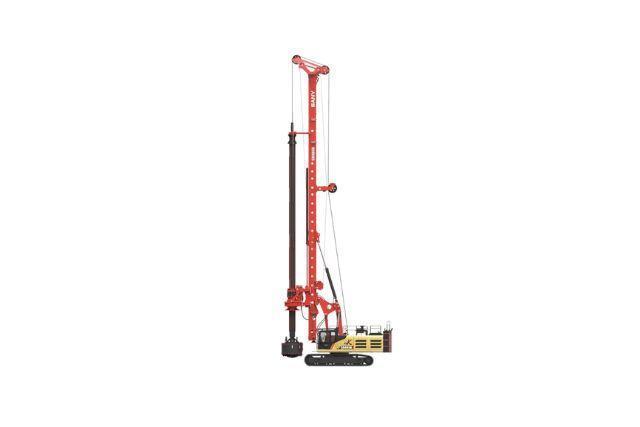

New Sany 2025 SR405R-HK Rotary Drilling Rig For Sale – Excellent Condition - Ras al khaima

Features
Strong and Stable Rock Drilling Ability
This model, the heaviest in its class, provides large crowding force combined with a robust, impact-resistant reducer to ensure stable torque output, ideal for drilling rock layers exceeding 60MPa.
High Durability
Structural parts are designed with impact and fatigue resistance, and the Kelly bar’s single-layer wire rope winding eliminates mutual friction, increasing wire rope longevity by 35%.
Efficient and Cost-Effective
Real-time power optimization control technology manages power distribution effectively, offering quick compound responses and reducing fuel consumption by 10-15%.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 377/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5～25rpm
Rated Output Torque: 405kN·m
Pile
Max. Pile Diameter: 2800mm
Max. Pile Depth: 103/84m
Crowd System
Crowd Force: 340kN
Stroke: 6000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27700mm
Operating Weight: 131T
Transport Width: 3550mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 400kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm

Price: AED 3342000
Request for quote: +971525384269
