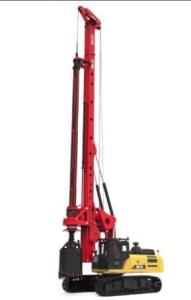

Grab SANY SR215-C10 Rotary Drilling Rig – Energy-Smart Heavy Equipment - Dubai

The SR215-C10 delivers outstanding drilling performance with high vertical accuracy and efficient hoisting. Its telescopic chassis and roller slewing system ensure deep borehole stability. An advanced EFI engine optimizes energy use while providing powerful output. The box-structured mast and sixth-gen Kelly bar increase overall strength by 25%. A user-friendly 10-inch HD screen enhances operator productivity.

Parameters

Main Chassis

Base Engine- Isuzu 6HK1
Engine Power- 212/2000kW/rpm
Emission Regulation- China Stage Ⅲ

Rotary Drive

Rated Speed- 5~30rpm
Rated Output Torque- 220kN·m

Pile

Max. Pile Diameter- 1800mm
Max. Pile Depth- 64/51m

Crowd System

Crowd Force- 180kN
Stroke- 4200mm
Line Pull- 190kN

Overall Machine

Overall Height- 21040mm
Operating Weight- 65T
Transport Width- 3210mm
Transport Height- 3560mm

Main Winch

Lifting Capacity- 220kN
Max. Line Speed- 75m/min
Rope Diameter- 28mm

Price: 2500000 AED
For More Information
Call us Now: +971 525384269
