Grab Best Deal: 2025 SANY SR400M-V Rotary Drilling Rig At Best Price - Umm al Quwain

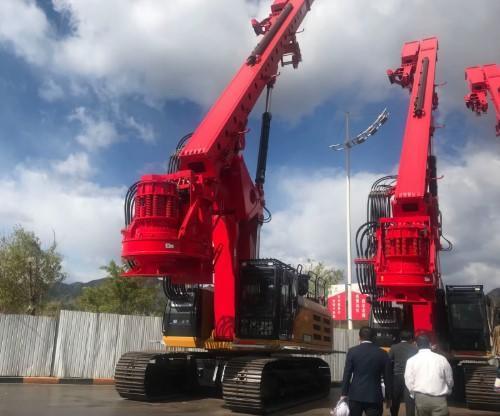

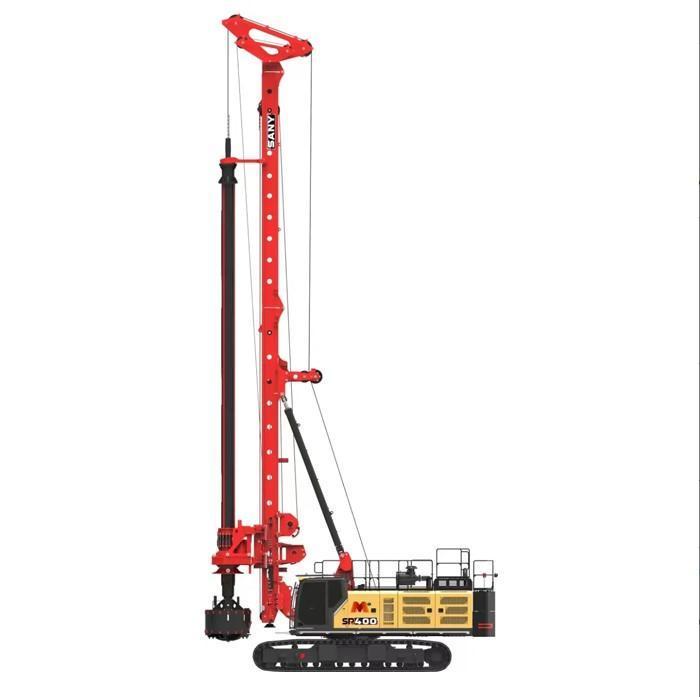

The SANY SR400M-V Rotary Drilling Rig is a next-generation foundation machine delivering power, control, and efficiency. Its robust rotary drive and advanced hydraulics enable superior penetration and precision. Intelligent control ensures steady operation across diverse terrains. The durable design and energy-conscious system reduce costs and downtime. Ideal for demanding piling and infrastructure developments.

Features-

High Efficiency: Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.

Full Stroke Crowd: Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.

Economy and Energy Saving: Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.

Convenience: The SANY SR400M-V rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.

Step Drum: Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.

Intelligent Upgrade: SANY SR400M-V has HD touch screen, 3ms refresh frequency, smooth animation display.

Parameters-
Operating Weight: 137T
Lifting Capacity: 410kN
Max. Line Speed: 66m/min
Rope Diameter: 36mm
Base Engine: Cummins X15
Engine Power: 391/1800kW/rpm
Emission Regulation: Stage V/Tier4 final
Crowd Force: 405kN
Stroke: 9000/19000mm
Line Pull: 405kN
Overall Height: 27430mm
Transport Width: 3600mm
Transport Height: 3380mm
Rated Speed: 7~26rpm
Rated Output Torque: 400kN·m
Max. Pile Diameter: 2500mm
Max. Pile Depth: 103/86m

-------------------------------Price (AED): 2830000----------------------
------------------------Request For Quote: +971525384269------------
