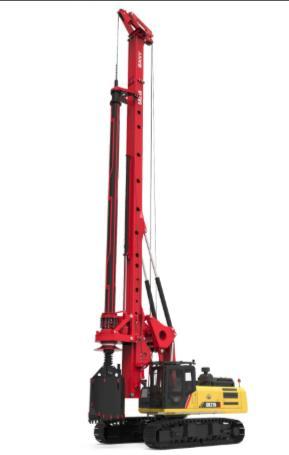

Get SANY SR215-C10 Rotary Drilling Rig – High-Strength & Stable - Fujairah

Built for deep borehole construction, this rig delivers fast hoist speeds and excellent verticality. Its large telescopic chassis and roller slewing design ensure superior stability. The imported EFI engine with power optimization improves response and fuel efficiency. The box mast design and upgraded Kelly bar add durability and drilling strength. Operators benefit from an easy-to-use 10-inch HD screen for efficient control.

Parameters

Main Chassis

Base Engine- Isuzu 6HK1
Engine Power- 212/2000kW/rpm
Emission Regulation- China Stage Ⅲ

Rotary Drive

Rated Speed- 5~30rpm
Rated Output Torque- 220kN·m

Pile

Max. Pile Diameter- 1800mm
Max. Pile Depth- 64/51m

Crowd System

Crowd Force- 180kN
Stroke- 4200mm
Line Pull- 190kN

Overall Machine

Overall Height- 21040mm
Operating Weight- 65T
Transport Width- 3210mm
Transport Height- 3560mm

Main Winch

Lifting Capacity- 220kN
Max. Line Speed- 75m/min
Rope Diameter- 28mm

Price: 2500000 AED
