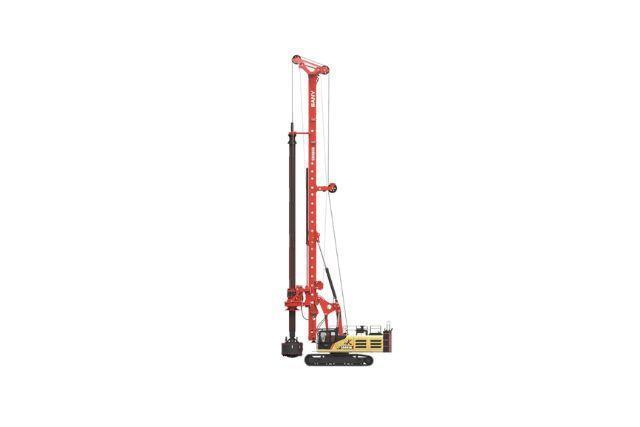

For Sale: Sany 2025 SR405R-HK Rotary Drilling Rig – Efficient & Durable - Abu Dhabi

Features
Outstanding Drilling Strength in Hard Rock
The heaviest model in its range provides powerful crowding force with a heavy-duty, shock-resistant reducer that maintains steady torque for drilling rock layers over 60MPa.
Long-Lasting Components
Structural parts employ impact and fatigue-resistant materials, and the Kelly bar’s single-layer wire rope winding prevents internal wear, extending wire rope lifespan by 35%.
Energy Efficiency and Savings
Real-time power distribution enabled by power optimization control technology ensures prompt response and reduces fuel use by 10 to 15%.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 377/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~25rpm
Rated Output Torque: 405kN·m
Pile
Max. Pile Diameter: 2800mm
Max. Pile Depth: 103/84m
Crowd System
Crowd Force: 340kN
Stroke: 6000mm
Line Pull: 380kN
Overall Machine
Overall Height: 27700mm
Operating Weight: 131T
Transport Width: 3550mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 400kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm

Price: AED 3342000
Request for quote: +971525384269
