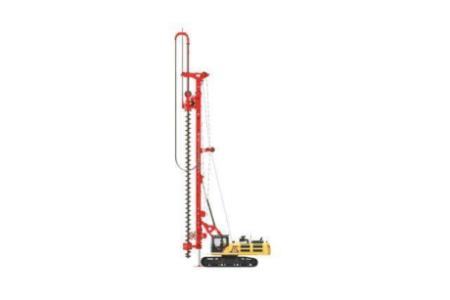

For Sale: SANY 2025 SR235-MIII Rotary Drilling Rig – New Arrival - Abu Dhabi

Features
Multi-Purpose Drilling Capability
Equipped to manage diverse geological conditions, this system’s smooth compound movement and customizable rotary control enhance drilling efficiency in mixed terrains.
Eco-Efficient Engine System
Developed in collaboration with leading engine manufacturers, the power unit ensures low emissions, high reliability, and sustained performance in line with global environmental standards.
Extended Stroke for Specialized Needs
With a 15-meter stroke capacity, this rig is optimized for long casing operations, especially in difficult environments like reclaimed land and granular formations.

Parameters
Standard Mode
Crowd Force: 210kN
Stroke: 15000mm
Overall Height: 24050mm
Max. Pile Diameter: 2000mm
Max. Pile Depth: 73/56m
Operating Weight: 86T
Line Pull: 270kN
Rated Speed: 5~30rpm
Rated Output Torque: 235kN·m
Main Chassis
Base Engine: 6UZ1
Engine Power: 257/2000kW/rpm
Emission Regulation: China Stage III
Main Winch
Lifting Capacity: 235kN
Max. Line Speed: 70m/min
Rope Diameter: 32mm

Price: AED 260000
Request for quote: +971525384269
