Exclusive Sale: 2025 SANY SH500 Hydraulic Grab | Buy Today - Abu Dhabi

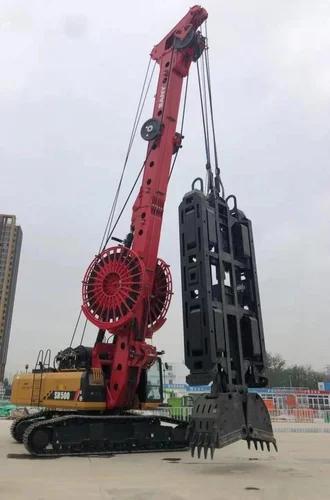

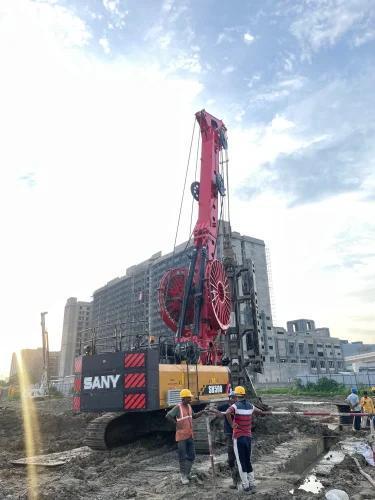

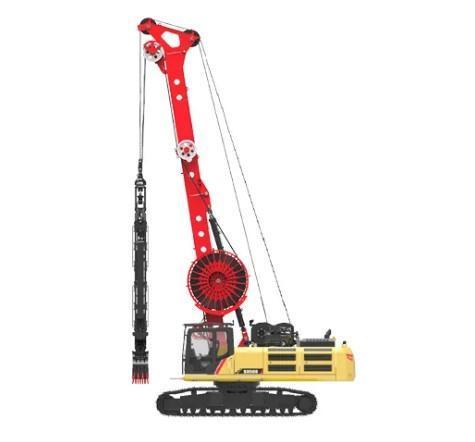

Engineered for precision and durability, the SANY SH500 Hydraulic Grab excels in tough material handling environments. Its high-efficiency hydraulic system delivers strong gripping power and precise control. The robust design provides stability and long-lasting performance under heavy loads. Perfect for demanding sites like quarries, ports, and construction projects, it ensures efficient workflow. Designed for reliability, it enhances safety and productivity across operations.

Features-
Powerful: The working device has large weight and maximum impact power, and can be deployed in strongly weathered rock strata within 10MPa.
Fast: The opening and closing time of the bucket is only 9 seconds, and the efficiency of soil catching, slag collecting and unloading is higher. The winch adopts synchronous confluence technology with the fastest speed.
Straight: The dynamic real-time detection technology of gyroscope is adopted to adjust the deviation of the gantry push plate in real time, and the perpendicularity of the groove can reach 1‰.
Stable: Professional large gauge chassis reduces rapid impact and shake and improves construction safety.
Deep: The construction depth is 80 meters, covering more than 90% of underground support projects, and the quality of grooves deeper than 60 meters is higher.
Economical: The main winch adopts single-layer large drum, and the wire rope has longer service life.
Convenient: It is equipped with electric centralized lubrication system and hydraulic quick-change joint to improve the convenience of disassembly, installation and maintenance.

Parameters-
Base Engine: ISUZU 6UZ1
Engine Power: 257/2000kW/rpm
Emission Regulation: China Stage III
Groove Width: 600-1200mm
Groove Depth: 80m
Overall Height: 17435mm
Operating Weight: 100T
Transport Width: 3500mm
Transport Height: 3720mm
Max. Closing Force: 165T
Weight: 15-25T
Open & Close Bucket Time: 10/10S
Lifting Capacity: 2*270kN
Max. Line Speed: 80m/min
Wire Rope Diameter: 32mm
