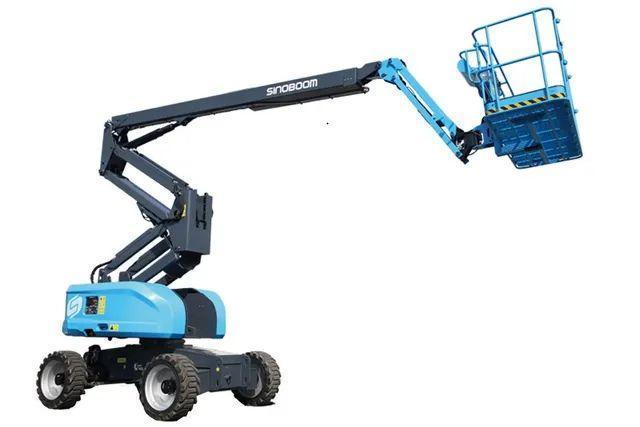

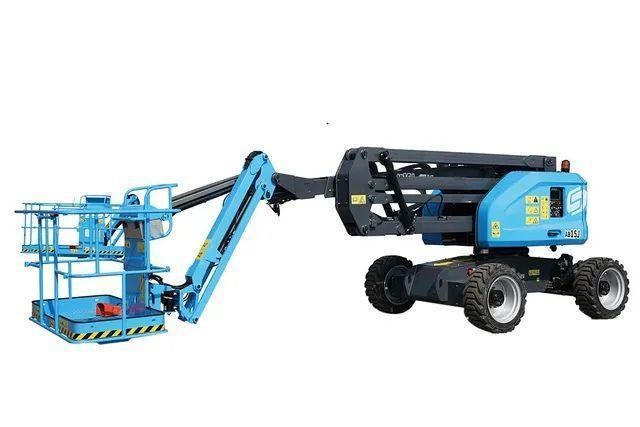

Discount Alert 2025 Sinoboom AB15J Articulated Boom Lift - Ras al khaima

The Sinoboom AB15J is an engine-driven articulating boom lift designed for high efficiency and precise operation, delivering a maximum working height of 16.7 meters. Its compact width and zero tail swing make it perfectly suited for confined or narrow work areas. The platform’s movement is independent of the secondary arm, allowing easy vertical adjustments. Featuring a simplified linkage system and hydraulic self-leveling, the lift guarantees stable and consistent performance. Equipped with three joysticks offering variable proportional controls, it enables smooth and accurate operation. Built for both indoor and outdoor environments, the AB15J is a reliable solution for tasks in construction, maintenance, and facility management.

Highlights
Ultra-Compact Wheelbase for Tight Spaces
Fast, Responsive Height Adjustments
Reliable for Continuous Lifting Operations

Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%

Features
Narrow width with zero tail sweep
Oscillating function
7-in display screen
4WD× 2WS
Proportional control with 3 joysticks
Automotive-grade sleeves for all pipes
Hydraulic platform leveling
Weighing system

Price: AED 203000
Request for quote: +971525384269
