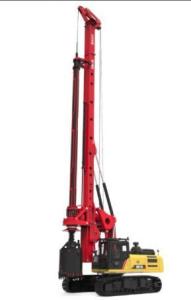

Buy SANY SR215-C10 Rotary Drilling Rig – Powerful & Efficient - Ajman

Widely applied in civil engineering, this rig excels in small-diameter, deep borehole projects with fast hoist speeds and precise verticality. Its telescopic wide chassis and roller slewing bearing ensure maximum stability. Powered by an imported EFI engine with optimized fuel distribution, it delivers strong output with higher efficiency. The box-structured mast offers torsion resistance, while the upgraded Kelly bar boosts drilling strength by 25%. A 10-inch HD touch screen makes operation fast and easy.

Parameters

Main Chassis

Base Engine- Isuzu 6HK1
Engine Power- 212/2000kW/rpm
Emission Regulation- China Stage Ⅲ

Rotary Drive

Rated Speed- 5~30rpm
Rated Output Torque- 220kN·m

Pile

Max. Pile Diameter- 1800mm
Max. Pile Depth- 64/51m

Crowd System

Crowd Force- 180kN
Stroke- 4200mm
Line Pull- 190kN

Overall Machine

Overall Height- 21040mm
Operating Weight- 65T
Transport Width- 3210mm
Transport Height- 3560mm

Main Winch

Lifting Capacity- 220kN
Max. Line Speed- 75m/min
Rope Diameter- 28mm

Price: 2500000 AED
