Buy Latest SANY SDC120 Trench Cutter 2025 - Umm al Quwain

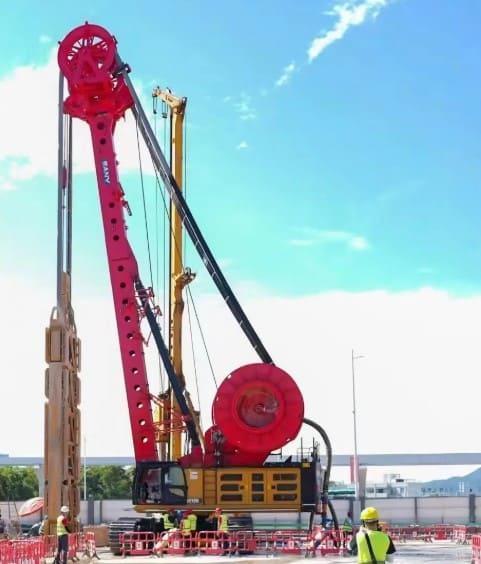

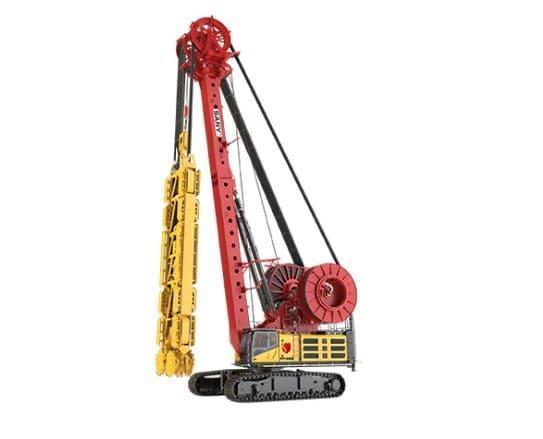

The SANY SDC120 Trench Cutter is designed for professional foundation engineering. It features a powerful cutting system for precise trench excavation. The hydraulic technology enhances efficiency and operator control. Its robust structure ensures durability under heavy workloads. The cutter excels in diaphragm wall projects and tough ground. It guarantees reliability and productivity in all conditions.

Features-

High Rock-breaking Efficiency: Strong power, ample torque, high speed, and fully arranged teeth working with movable teeth to achieve hard rock and no dead angle milling with high efficiency.

High Slag Discharge Efficiency The industry's first pump and air-combined slag discharge system can discharge slag quickly, even in deep trenches, accelerating speed, improving efficiency, and reducing the chances of pipe blocking simultaneously.

High-quality Grooving: The vertical rotation device of the frame ensures that the cutting wheel frame is upright, and 12 sets of deviation correction devices are equipped to provide high-quality grooving.

Strong Rectifying Ability: Correction cylinder with large diameter and long stroke enables significant thrust, which can meet the needs of hard stratum and significant deviation rectifying.

Automatic Pipe Draining: The mud capstan is automatically deflected to ensure that The capstan direction is consistent with the pipe inlet angle to avoid mud pipe wear and prolong the service life of the mud pipe.

The Long Service Life of Worn Parts: Steel ring structure mud pipe is explosion-resistant and wear-resistant with a long service life. The fixed end of the wire rope is equipped with a torque release device to ensure a stable internal structure and long service life.

Comfortable Operation: The flexible design of the mast cylinder can effectively prevent vibration from being transmitted to the cab during the construction of the working device, making driving smooth.

Convenient Construction: In corner construction, the rotating function of the working device ensures that the active device can quickly enter the groove.

Convenient Disassembly and Assembly: When disassembling and transferring, mud and oil pipes can be completely retracted from the capstan and transported with the capstan on a unique transport rack.

Steady Micro Feed: Steady, continuous micro feed speeds up to millimeter level, which can perfectly meet the needs of slow feed in complex rock construction.

Intelligent Construction: Cutting wheel speed, torque, winch load, and milling speed are self-adaptive to maximize construction efficiency. Drilling and mud pump discharge power can be automatically adjusted to optimize power utilization.

Parameters-
Engine Power: 570.5/1800kW/rpm
Grooving Depth of Single Hole: 2800mm
Grooving Thickness: 800 - 1800mm
Max. Grooving Depth: 120m
Max. Speed of Milling Wheel: 25rpm
Milling Wheel Gearbox Torque: 2×120kN·m
Mud Pump: 450m³/h
Number of Deviation Correction Devices: 12
Overall Quality: 230T
Winch Lifting Force: 2×390kN

-------------------------------Price (AED): 1920000----------------------
------------------------Request For Quote: +971525384269------------
