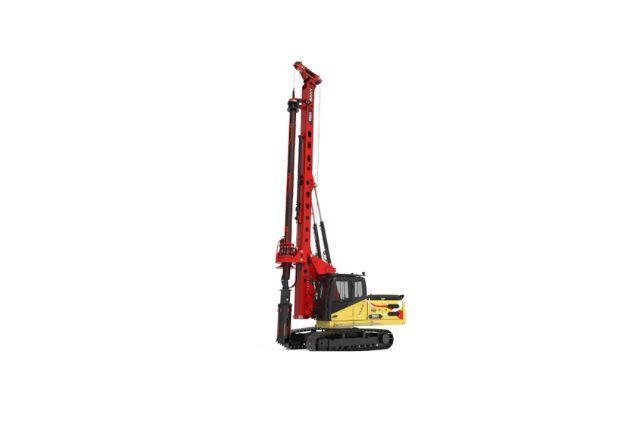

2025 Sany SR65-C10 Rotary Drilling Rig – Cutting-Edge Drilling Technology - Sharjah

Features
Widely applied in civil engineering for constructing deep, small-diameter boreholes, these rigs offer efficient performance with fast hoist speeds and precise vertical borehole alignment.
They feature a specialized telescoping chassis and large-diameter roller slewing bearing, which guarantee stability during drilling.
Powered by an imported EFI engine with large displacement, the rig adopts power optimization technology to optimize power distribution, enhance response time, and increase fuel savings.

Parameters
Main Chassis
Base Engine: ISUZU 4JJ1
Engine Power: 84/2200kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~40rpm
Rated Output Torque: 70kN·m
Pile
Max. Pile Diameter: 1100mm
Max. Pile Depth: 27/20m
Crowd System
Crowd Force: 110kN
Stroke: 3000mm
Line Pull: 120kN
Overall Machine
Overall Height: 12765/8110mm
Operating Weight: 23T
Transport Width: 2700mm
Transport Height: 3410mm
Main Winch
Lifting Capacity: 90kN
Max. Line Speed: 80m/min
Rope Diameter: 20mm

Price: AED 679,000
Request for quote: +971525384269
